Panasonic – SPG2 Screen Printer

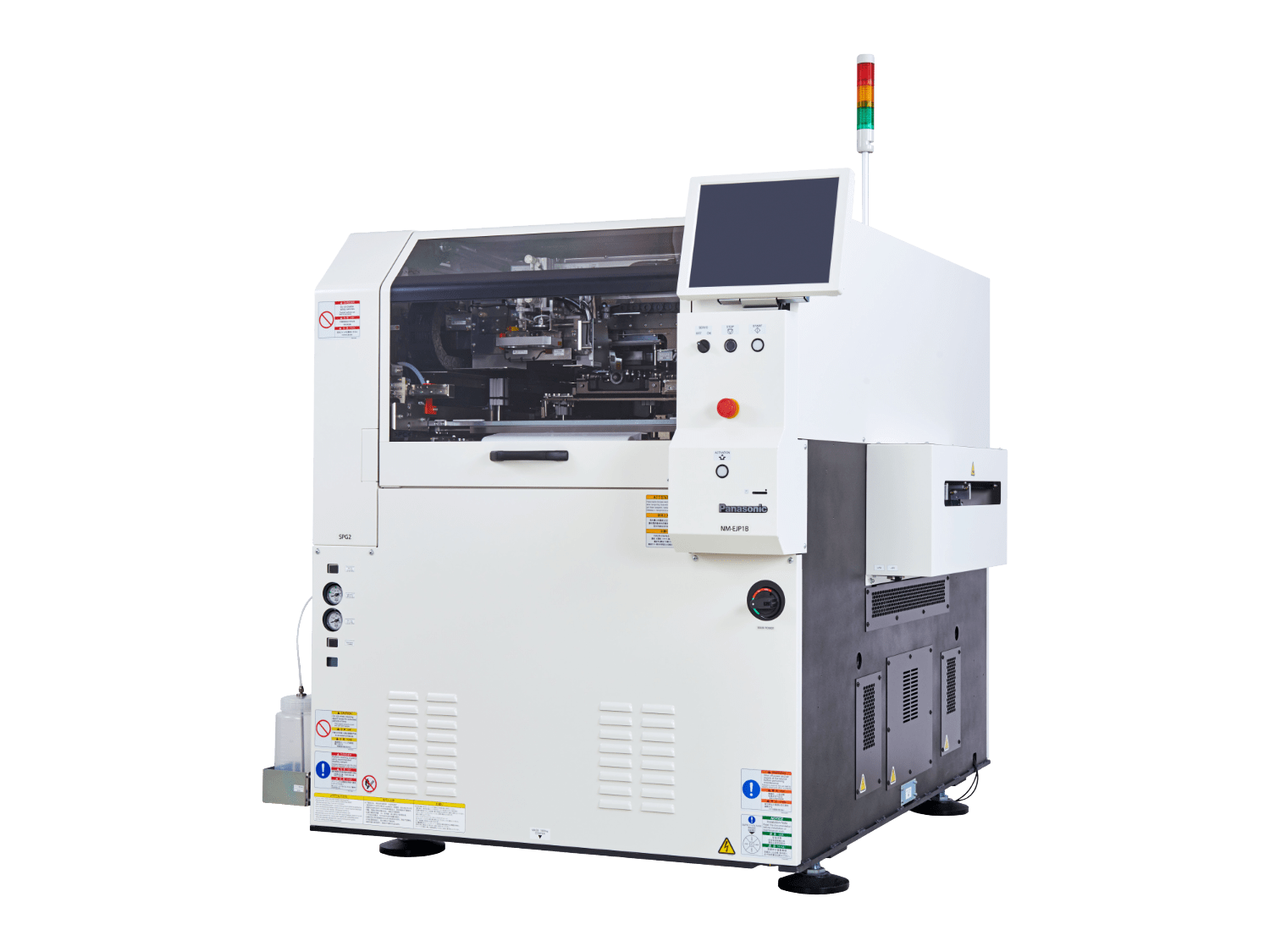

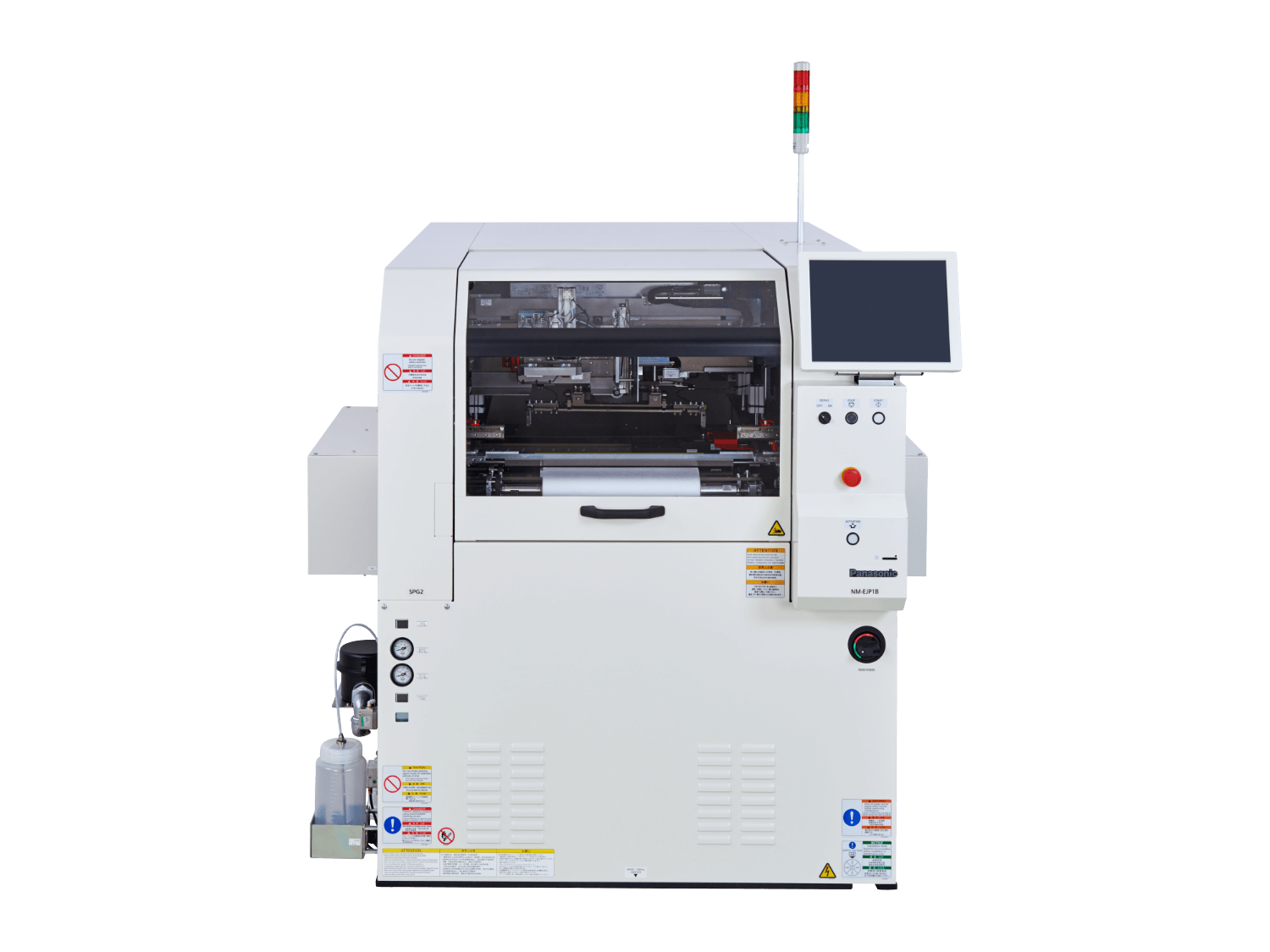

The printing performance of the SPG2 can be carried out in 14s with a process repeatability of ± 15μm. Larger circuit boards up to 510mm x 510mm can be handled without restrictions. A new programmable squeegee angle increases the filling pressure by up to 10%. The SPG2 can be equipped with the vacuum cleaning function, to enable a printing process without cleaning paper or cleaning agents. Additionally, it can be equipped with the optional automatic solder paste feed.
The SPG2 can be linked into the Panasonic software environment, e.g. in the MES solution PanaCIM Gen2, Process Tracker and the MMS maintenance module in connection with the MFO manufacturing optimizer. Together with the integrated connection, the SPG2 is a trendsetting screen printer for Industry 4.0 applications.
The SPG2 is Panasonic’s latest printer for innovative high-mix manufacturing environments. The printer is equipped with additional functions and automation solutions for an even more cost-efficient SMD printing. Together with Panasonic’s software solutions, the SPG2 is a trendsetting screen printer for Industry 4.0 applications. Various features minimize the line management.
Panasonic – SPG2 Screen Printer
The printing performance of the SPG2 can be carried out in 14s with a process repeatability of ± 15μm. Larger circuit boards up to 510mm x 510mm can be handled without restrictions. A new programmable squeegee angle increases the filling pressure by up to 10%. The SPG2 can be equipped with the vacuum cleaning function, to enable a printing process without cleaning paper or cleaning agents. Additionally, it can be equipped with the optional automatic solder paste feed.
The SPG2 can be linked into the Panasonic software environment, e.g. in the MES solution PanaCIM Gen2, Process Tracker and the MMS maintenance module in connection with the MFO manufacturing optimizer. Together with the integrated connection, the SPG2 is a trendsetting screen printer for Industry 4.0 applications.
The SPG2 is Panasonic’s latest printer for innovative high-mix manufacturing environments. The printer is equipped with additional functions and automation solutions for an even more cost-efficient SMD printing. Together with Panasonic’s software solutions, the SPG2 is a trendsetting screen printer for Industry 4.0 applications. Various features minimize the line management.
Panasonic – SPG2
Screen Printer
The printing performance of the SPG2 can be carried out in 14s with a process repeatability of ± 15μm. Larger circuit boards up to 510mm x 510mm can be handled without restrictions. A new programmable squeegee angle increases the filling pressure by up to 10%. The SPG2 can be equipped with the vacuum cleaning function, to enable a printing process without cleaning paper or cleaning agents. Additionally, it can be equipped with the optional automatic solder paste feed.
The SPG2 can be linked into the Panasonic software environment, e.g. in the MES solution PanaCIM Gen2, Process Tracker and the MMS maintenance module in connection with the MFO manufacturing optimizer. Together with the integrated connection, the SPG2 is a trendsetting screen printer for Industry 4.0 applications.
The SPG2 is Panasonic’s latest printer for innovative high-mix manufacturing environments. The printer is equipped with additional functions and automation solutions for an even more cost-efficient SMD printing. Together with Panasonic’s software solutions, the SPG2 is a trendsetting screen printer for Industry 4.0 applications. Various features minimize the line management.
Machine Specifications
| Model ID | SPG2 |
|---|---|
| Model No. | NM-EJP1B |
| PCB dimensions (mm) *1 | L 50 × W 50 to L 510 × W 510 |
| PCB exchange time *2 | 14 sec including transfer, PCB positioning and recognition, printing and regular cleaning (when PCB is L250 × W150) |
| Repeatability | 2Cpk ±4.0 μm 6σ (±3σ) (Under conditions specified by Panasonic) |
| Printing accuracy | 2Cp ±15.0 μm 6σ (±3σ) (Under conditions specified by Panasonic) |
| Screen frame dimensions (mm) *3 |
L 736 × W 736、L 750 × W 750, L 650 × W 550、L 600 × W 550; L 550 × W 650、L 584 × W 58 L 736 × W 584、L 584 × W 736 |
| Electric source *4 | 1-phase AC 200, 220, 230, 240 V ±10V (tap changing available) Max. 2.5 kVA |
| Pneumatic source | 0.5 MPa, 30 L/min (A.N.R.) (Blower motor vacuum spec) , 400L/min (A.N.R.) (ejector vacuum spec) |
| Dimensions (mm) *5 | W 1 580 × D 1 800 × H 1 500 |
| Mass *6 | 1 600 kg |
Machine Specifications
| Model ID | SPG2 |
|---|---|
| Model No. | NM-EJP1B |
| PCB dimensions (mm) *1 | L 50 × W 50 to L 510 × W 510 |
| PCB exchange time *2 | 14 sec including transfer, PCB positioning and recognition, printing and regular cleaning (when PCB is L250 × W150) |
| Repeatability | 2Cpk ±4.0 μm 6σ (±3σ) (Under conditions specified by Panasonic) |
| Printing accuracy | 2Cp ±15.0 μm 6σ (±3σ) (Under conditions specified by Panasonic) |
| Screen frame dimensions (mm) *3 |
L 736 × W 736、L 750 × W 750, L 650 × W 550、L 600 × W 550; L 550 × W 650、L 584 × W 58 L 736 × W 584、L 584 × W 736 |
| Electric source *4 | 1-phase AC 200, 220, 230, 240 V ±10V (tap changing available) Max. 2.5 kVA |
| Pneumatic source | 0.5 MPa, 30 L/min (A.N.R.) (Blower motor vacuum spec) , 400L/min (A.N.R.) (ejector vacuum spec) |
| Dimensions (mm) *5 | W 1 580 × D 1 800 × H 1 500 |
| Mass *6 | 1 600 kg |
Features and Upgrades
| Model ID | SPG2 |
|---|---|
| Model No. | NM-EJP1B |
| PCB dimensions (mm) *1 | L 50 × W 50 to L 510 × W 510 |
| PCB exchange time *2 | 14 sec including transfer, PCB positioning and recognition, printing and regular cleaning (when PCB is L250 × W150) |
| Repeatability | 2Cpk ±4.0 μm 6σ (±3σ) (Under conditions specified by Panasonic) |
| Printing accuracy | 2Cp ±15.0 μm 6σ (±3σ) (Under conditions specified by Panasonic) |
| Screen frame dimensions (mm) *3 |
L 736 × W 736、L 750 × W 750, L 650 × W 550、L 600 × W 550; L 550 × W 650、L 584 × W 58 L 736 × W 584、L 584 × W 736 |
| Electric source *4 | 1-phase AC 200, 220, 230, 240 V ±10V (tap changing available) Max. 2.5 kVA |
| Pneumatic source | 0.5 MPa, 30 L/min (A.N.R.) (Blower motor vacuum spec) , 400L/min (A.N.R.) (ejector vacuum spec) |
| Dimensions (mm) *5 | W 1 580 × D 1 800 × H 1 500 |
| Mass *6 | 1 600 kg |
